Product Detail

Model No.: DLM-0818
Production Capacity: 100 Sets Per Month
Delivery Date: 30 workdays
Product: DLM-0818 Motor Stator Wedge...
Means of Transport: Ocean
Packing: Plywood Case
Brand Name: DL

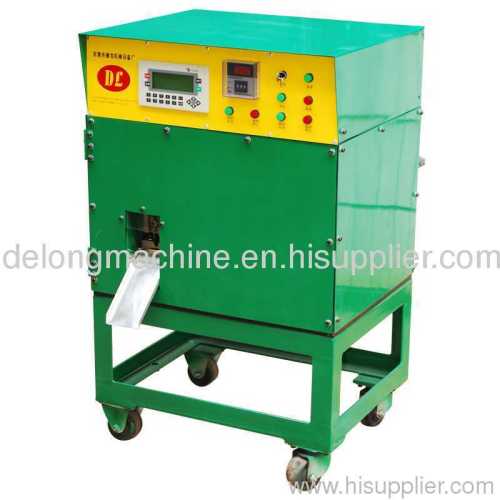

DLM-0818 Motor Stator Wedge Paper Forming & Cutting Machine
It can be used for insulation paper coil stock with different thickness and width.

DLM-0818 Motor Stator Wedge Paper Forming & Cutting Machine

(1) Adopting the mode of horizontal mechanical transmission and hot-rolled forming, it can automatically and continuously complete paper transferring, forming and cutting.
(2) Preheating unit is set before the forming of insulating paper to regulate the preheating temperature according to the forming requirements; it can be used for insulation paper coil stock with different thickness and width through the mold replacement, and can satisfy the slot insulation demand when artificially inserting wire in small and medium-sized motors.
(3) Applicable to manifold and less demand motor produce. Flexible control of the number of finished products. High-precision stepper motors, simple and accurate feeding.
DLM-0818 Motor Stator Wedge Paper Forming & Cutting Machine
Technical Parameter
DLM-0818
Cut Length
1-99999mm
Finished Paper
1-99999 pcs/once
Cutting Motor
60W Induction Motor
High Torque Feeding Stepping Motor
35kg/cm
Temperature Control
0-200℃
Cutting Speed
100 pcs/min (Thickness: 0.25mm Length: 50mm)
Insulation Paper Thickness
0.19-0.35mm
Power
220V 1/4HP
Net Weight
165kg
Gross Weight
220kg
Machine Dimension (Lx W x H)
920mm x 630mm x 930mm
Plywood Case Size (Lx W x H)
1050mm x 750mm x 1150mm
